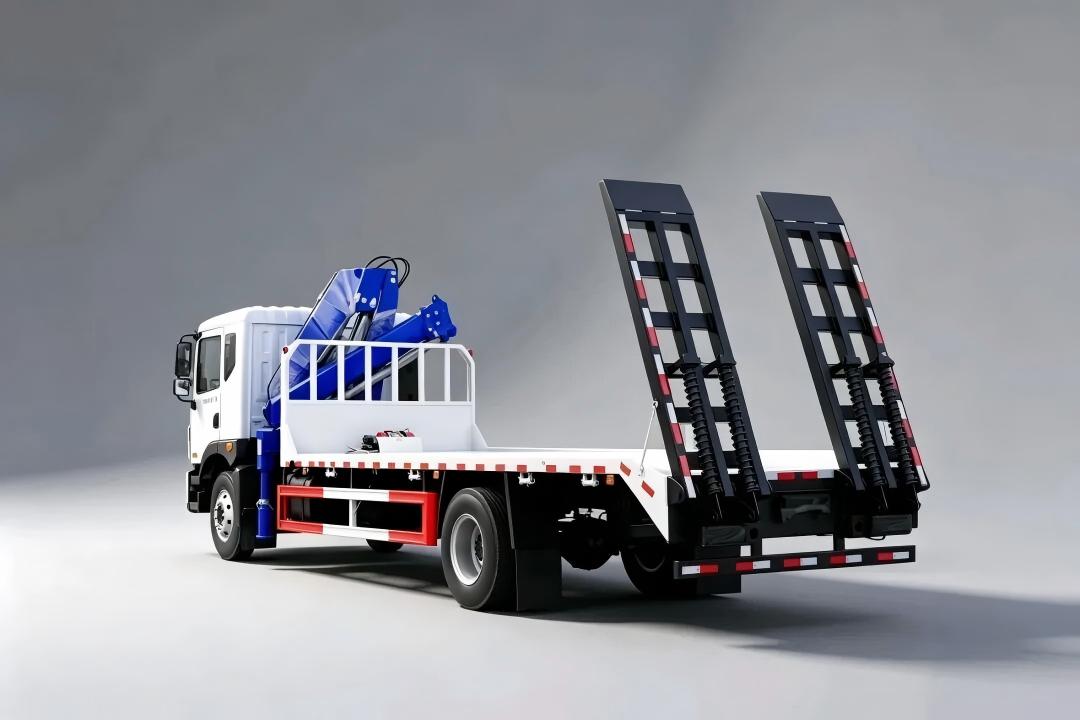

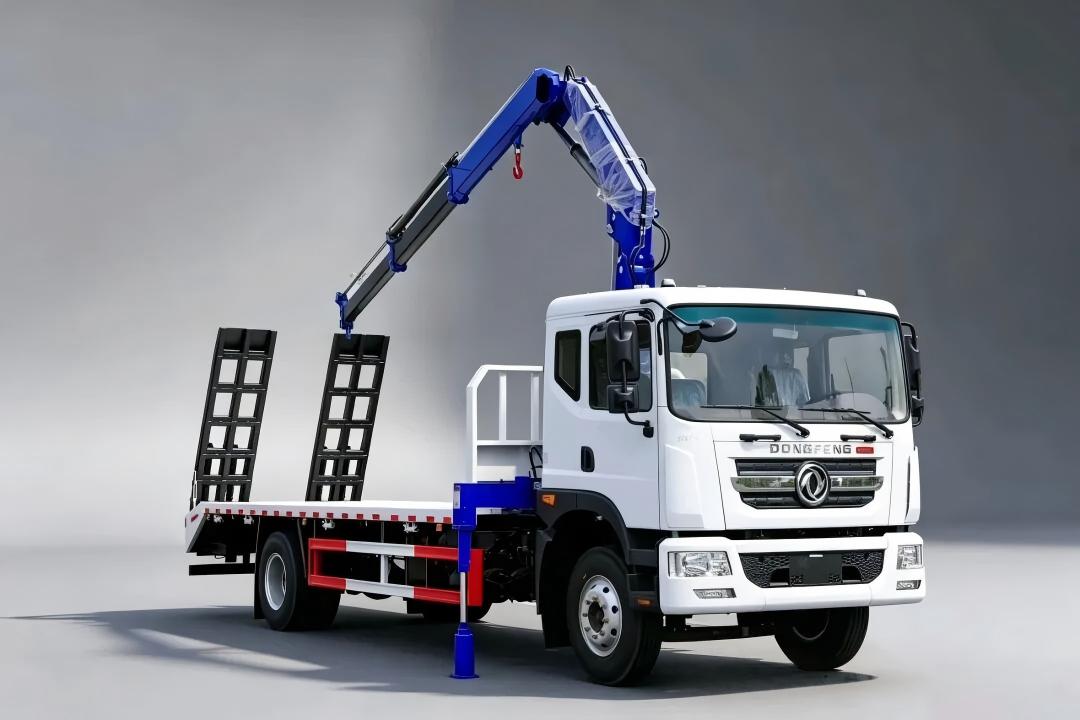

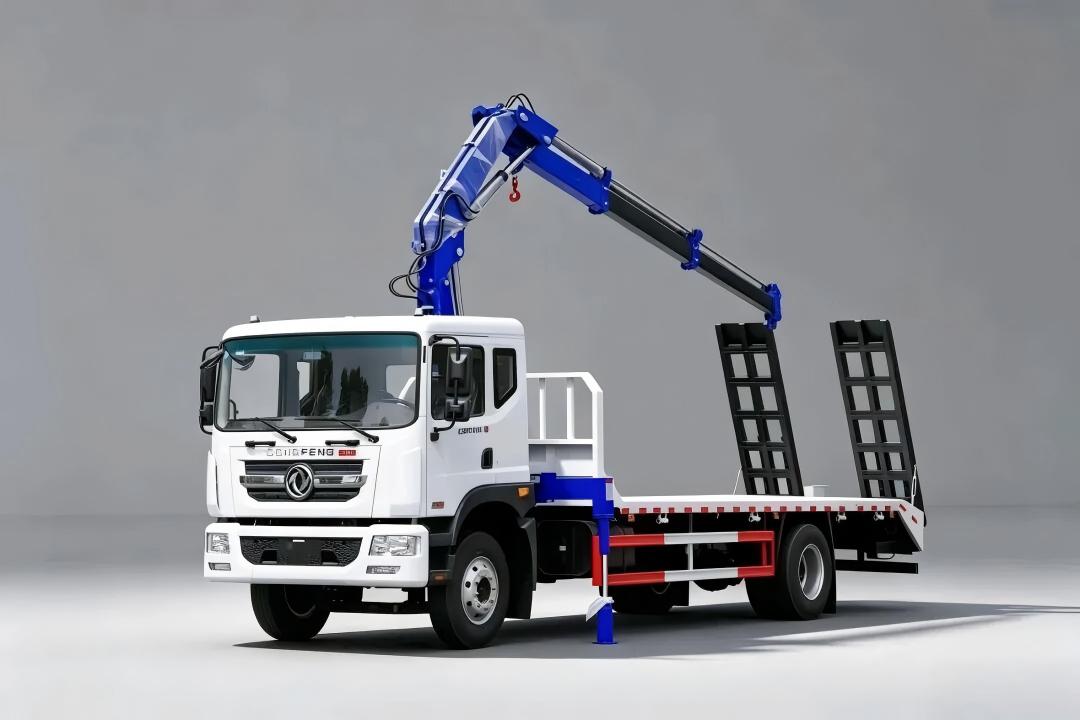

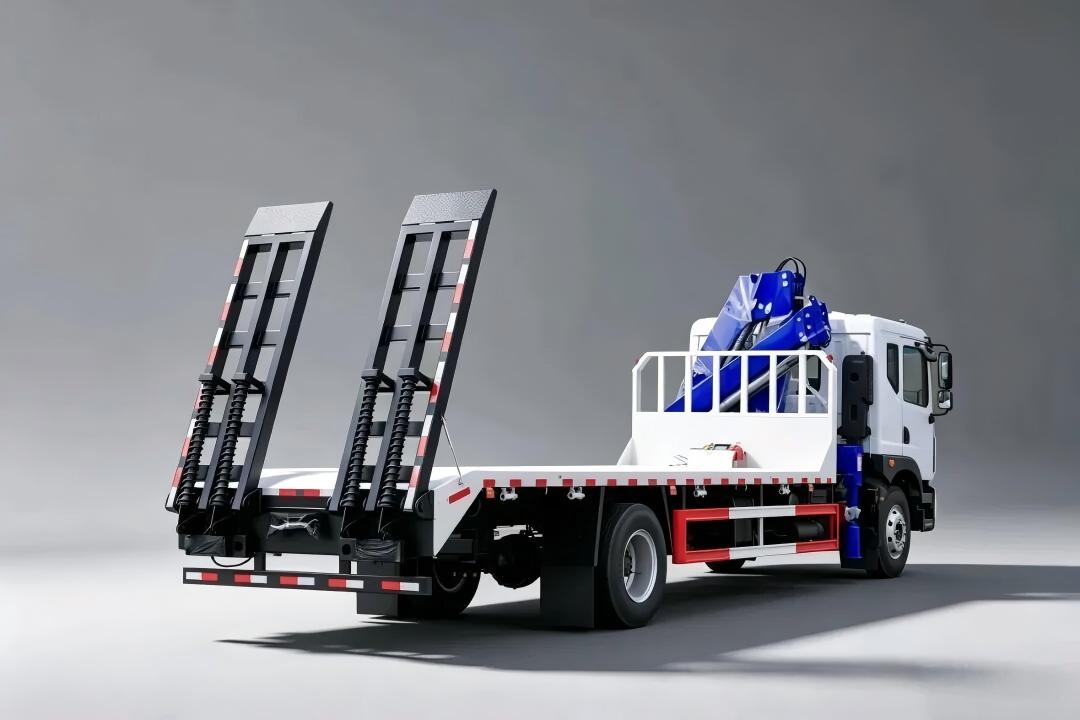

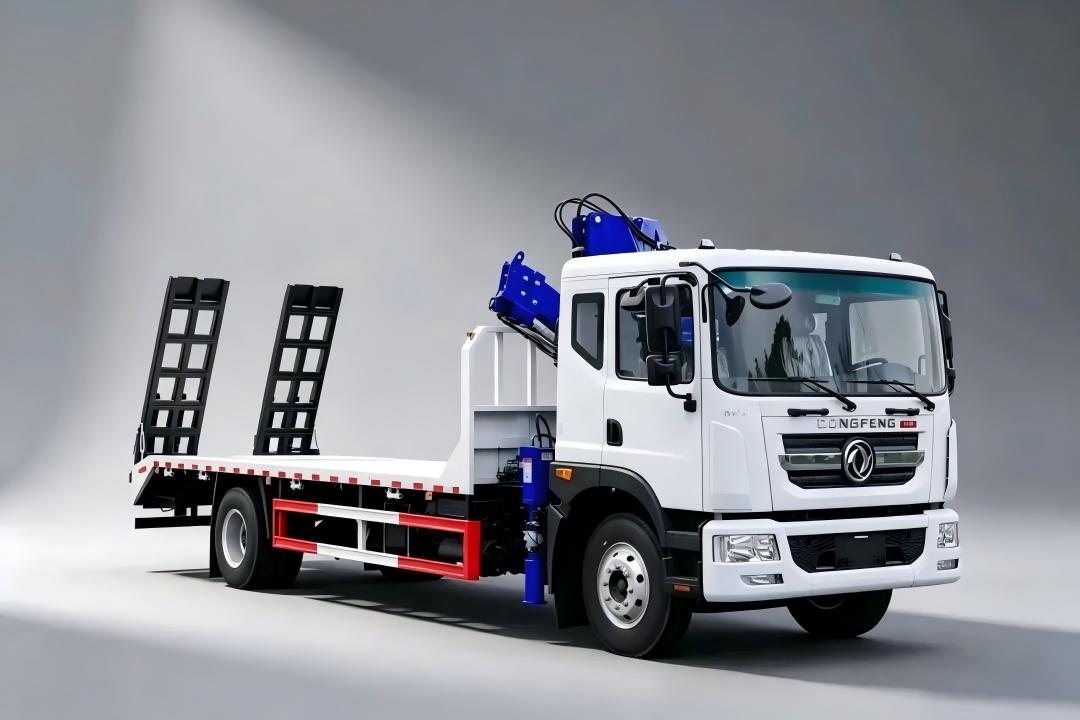

Self loading truck crane, 6 wheelers Dongfeng brand truck with knuckle boom crane 3.2Ton, flatbed with rear ladder
Chassis configuration: Dongfeng brand chassis, 2315mm extended cab, model LD98-001, wheelbase 5600mm, engine Euro 2 emission standard, B170-33 Cummins 170hp engine, 8JS75 Fast 8-speed transmission, 3.9-ton front axle, 8-ton rear axle, 9.00R20 16PR steel radial tires, 250mm double-layer frame, other features: electric windows and central locking, mechanical shock-absorbing seat, air brakes, exhaust brakes, spring brakes, clutch booster, power steering, 205L fuel tank, 2×100Ah batteries.
Crane Configuration:
Crane configuration: lifting capacity 3-ton, 2-section telescopic crane, model SQZ3.2-2, working radius 7 meters, lifting height 9 meters, ground operation.
flatbed Configuration: Plate length including ramp 6000*2500mm, matteris Q355B, crossbeam 100*100mm square tube, frame 120*80mm rectangular tube, base plate 5mm checkered plate, double spring assist rear ladder.
Truck-mounted crane flatbed transport vehicle (with ramp flatbed and 3.2-ton folding boom, truck-mounted crane transport vehicle)
I. Vehicle general Introduction
The model is a Dongfeng brand chassis flatbed truck-mounted crane (truck-mounted crane + flatbed excavator towing dual-purpose), a special-purpose engineering vehicle.
1. Two Core Functions
– Truck-mounted Crane: A folding hydraulic boom crane is mounted at the front of the truck bed, capable of lifting building materials, equipment, and small engineering machinery. with a multi-angle telescopic boom, can be attached drilling and grab tools, for timber and wastes material handling.
– Flatbed Towing: A double-spring hydraulic ladder is equipped at the rear of the vehicle. The flatbed cargo box is used to load small engineering equipment such as excavators, loaders, and drilling rigs. The ladder facilitates the loading and unloading of the machinery.
– With tow winch towing capacity 8Ton, for pulling material and truck rescue.
2. Chassis: Dongfeng special cargo chassis, 4×2 single-axle model, flexible for urban and rural roads.
II. Applicable Scenarios
1. Construction Machinery Transportation: transport of excavators, mini excavators, and forklifts;
2. Loose Building Material Lifting and Transportation: Landscaping, infrastructure steel, and utility pole lifting;
3. Municipal Emergency Repairs and Equipment Relocation: One vehicle replaces two vehicles (crane + flatbed trailer).
III. Key Features
– Knuckle boom cranes do not occupy much flatbed space, offering a larger carrying area compared to telescopic boom cranes;
– Spring assist ladders provide strong load-bearing capacity, eliminating the need for additional disassembly and unloading ramps;
– Popular rental model for small and medium-sized projects.
