Truck Crane lifting capacity 8000Kg, compact body suitable for narrow space lifting XINFEIG Crane-Henan Runli Automobile Service Co., Ltd.

Feature Introduction

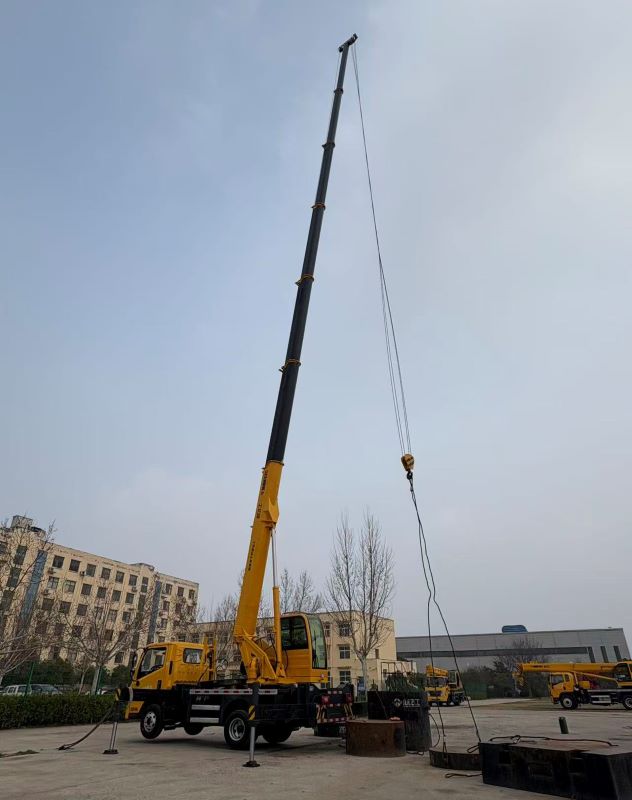

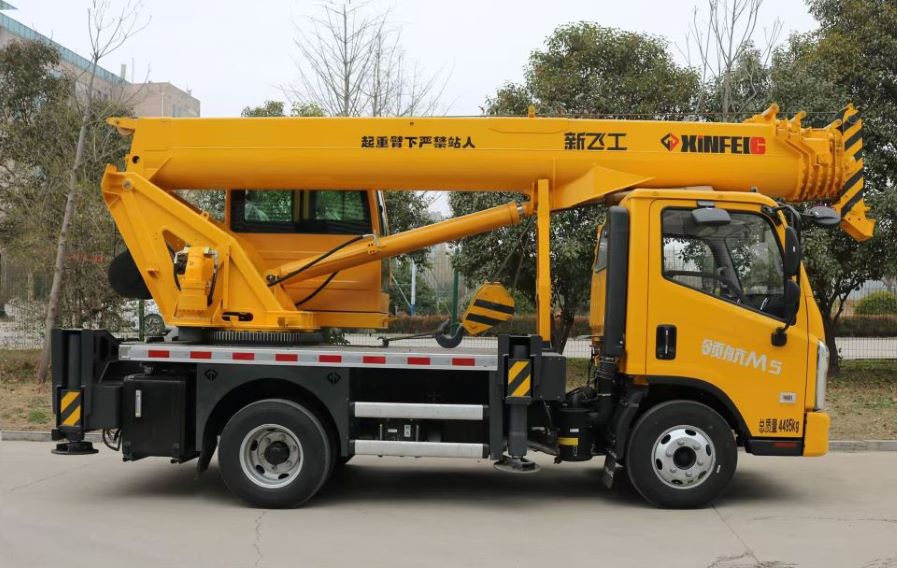

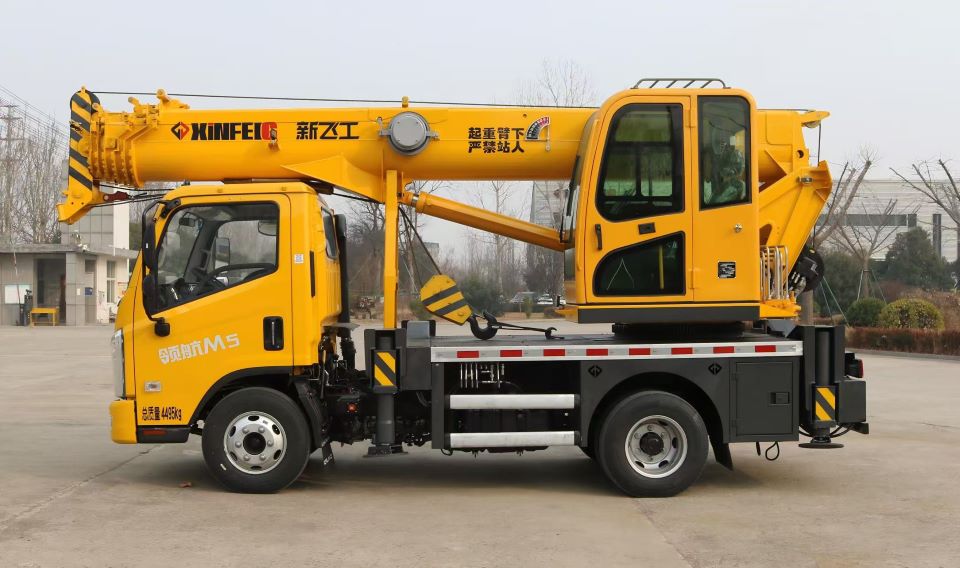

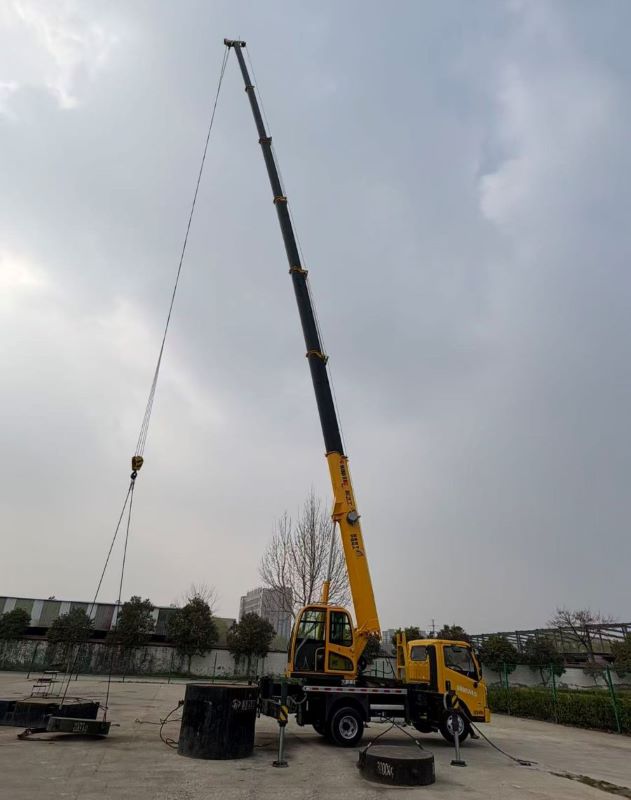

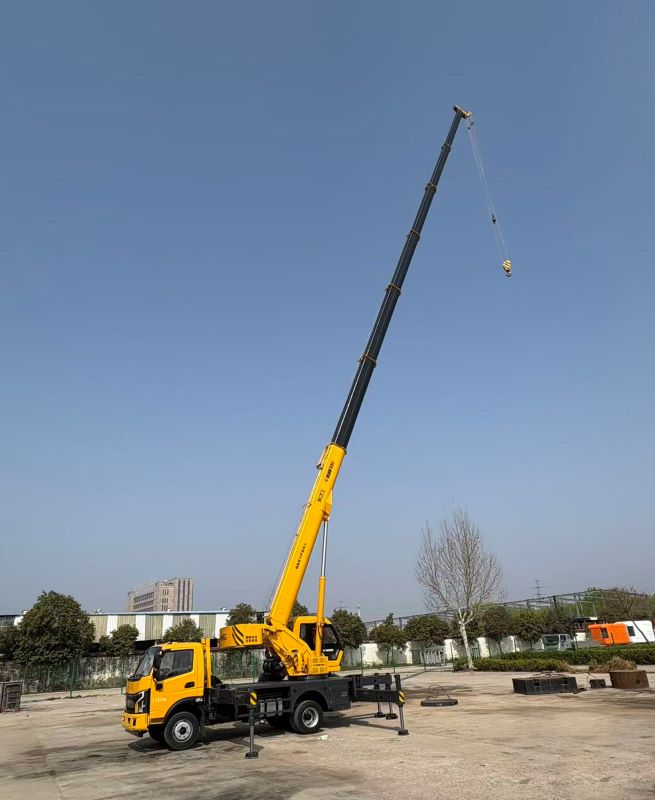

Truck Crane 8Ton 7-section boom crane, crane lifting capacity is 8000Kg, boom outreach is 27.5m, max crane working height is 6m, with one main hook, it has the special function, transforming girder it’s hydraulic drive extension rear two outrigger, in case enhanced working performance.

Boom material high tensile plate BS700MMKC, high tensile plate, ensure bearing capacity while reduce boom light, seven section boom 1 cylinder 5 ropes reliable working performance and enhance working efficiency.

Chassis brand FOTON, Model BJ1045V9JBA-33, Quanchai engine, 116kw power tire size 7.00R16LT 8PR, wheelbase 2800mm, total mass 4495Kg.

Crane specialized for narrow space lifting, dimension 5995*1950*2950mm, wheelbase 2800mm, total mass 4495Kg.

Special feature of crane

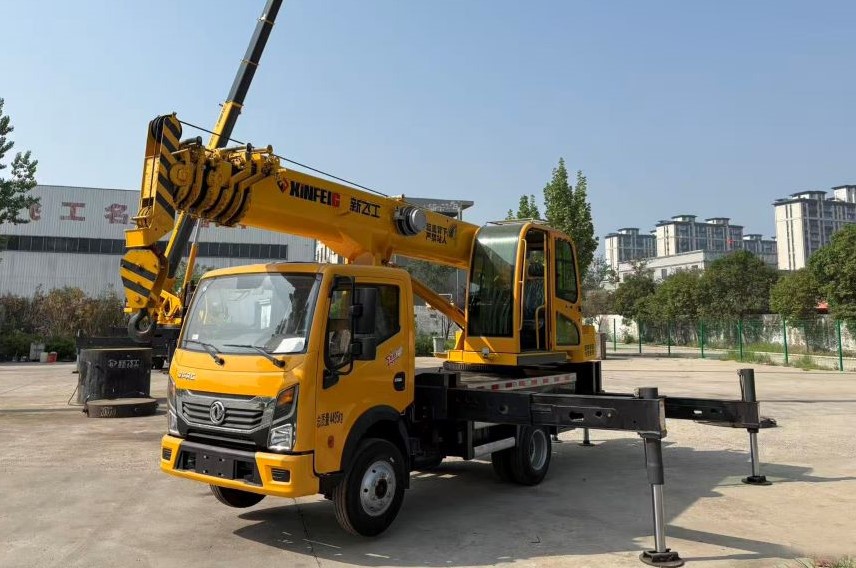

Crane girder has the transforming function, can be extension rear outrigger, enlarge outrigger span, that can enhance crane performance.

MINI truck crane, sutiable for narrow space worksite and good passing ablility for allayway.

XINFEIG brand mobile crane, an experter for small and medium sized hydraulic crane manufacturer

Application

Parameter

Crane part	Model	HFL5041JQZ
	Rated lifting capacity	8000Kg
	Max. boom outreach	27.5m
	Slewing angle (Continuous)	360°
	Boom raising angle	0-78°
	Working height	28.6m
	Numbers of boom	7 section
	Outrigger span	5810mm
	Recommend oil displacement	50L/min
	safety devices	LMI

Chassis Parameters

FOTON Chassis	Engine brand	QUANCHAI
	Engine model	Q25A-160C60
	Displacement(ml/kw)	2496/116
	Transmission	6 speed gear box, 6 forward and 1 reserve
	Wheelbase/No. of axle	2800mm / 2
	Engine torque	400N.m /1400-2600rpm
	Steering axle bearing (full loaded)	1800Kg
	Overall vehicle center of gravity height	1050/1065(mm)
	Weight distribution of each axle under curb weight	1610/2900
	Axle load	1800/2695Kg
	Tire Specification	245/70R19.5 16PR

	Tire Number	6 tires and 1 spare tire
	Steel ring	All steel wheel mesh ( 6+ 1)
	Total mass	4495(kg)
	Cuber weight	4300/4368(kg)
	Front and rear suspension	1100/1550,1600
	Approach and departure angle	20/13
	Max Speed	115 km/h
	Passenger	2/3
	Dimension	599519502950 mm
